FleetPromptData Element

Description

Driver-entered responses to prompts required during a transaction.

Namespace

http://Hps.Exchange.PosGateway

Type

FleetPromptDataType Complex Type

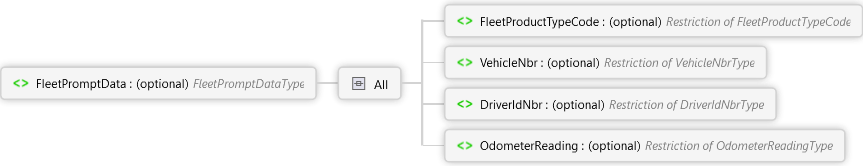

Diagram

Overview

FleetPromptData optional FleetPromptDataType Complex Type

Driver-entered responses to prompts required during a transaction.

All

FleetProductTypeCode optional FleetProductTypeCode Simple Type

Value encoded on the card that drives what information is prompted for at the point of sale.

Valid values include:

1 - Prompts for ID number and odometer reading
2 - Prompts for vehicle number and odometer reading
3 - Prompts for driver number and odometer reading
4 - Prompts for odometer reading only
5 - No prompts issued

VehicleNbr optional VehicleNbrType Simple Type

The Vehicle Number entered by the driver. Required when the FleetProductTypeCode is 2. For Mastercard the maximum value is 6 digits.

DriverIdNbr optional DriverIdNbrType Simple Type

The Driver ID / Driver Number entered by the driver. Required when the FleetProductTypeCode is 1 or 3. For Mastercard the maximum value is 6 digits.

OdometerReading optional OdometerReadingType Simple Type

The Odometer Reading entered by the driver. Required when the FleetProductTypeCode is 1, 2, 3, or 4.

Source

<xs:element name="FleetPromptData" type="FleetPromptDataType" minOccurs="0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
      <p xmlns="http://Hps.Exchange.PosGateway">Driver-entered responses to prompts required during a transaction.</p>
    </xs:documentation>
  </xs:annotation>
</xs:element>
